Bulk Trailer Safety Chain

Bulk chain by the pail. Not for overhead lifting.

GRADE 30-PROOF COIL:		Max Load/Working Load (lb)	Weight per Pail
P313 P143 P513	3/16", zinc - 250 ft per pail 1/4", zinc - 150 ft per pail 5/16", zinc - 92 ft per pail	3,200/ 750 5,200/1,250 7,600/1,900	101 lb 99 lb 84 lb
GRADE 43:
P144 P514 P384	1/4", zinc - 150 ft per pail 5/16", zinc - 110 ft per pail 3/8", zinc - 70 ft per pail	7,800/2,600 11,700/3,900 16,200/5,400	99 lb 109 lb 104 lb
GRADE 70:
P147 P517 P387	1/4", yellow zinc - 150 ft per pail 5/16", yellow zinc - 110 ft per pail 3/8", yellow zinc - 70 ft per pail	12,600/3,150 18,800/4,700 26,400/6,600	99 lb 109 lb 104 lb

HL34

Heavy-Duty Safety Chains With Latches

For use with heavy loads. Zinc finish. This grade of chain is designed for trailer safety chain applications only. Law requires the use of two chains. Each chain must exceed maximum trailer weight. Not for overhead lifting.

HL33
HL34
HL35
HL44
HL45
HL36
HL46

1/4" safety chain w/hook-grade 43, 37" length
5/16" safety chain w/hook-grade 43, 37" length
3/8" safety chain w/hook-grade 43, 37" length
5/16" safety chain w/hook-grade 70, 37" length
3/8" safety chain w/hook-grade 70, 37" length
1/2" safety chain w/hook-grade 43, 42" length
1/2" safety chain w/hook-grade 70, 42" length

Max Load
7,800 lb
11,700 lb
16,200 lb
18,800 lb
26,400 lb
27,600 lb
45,200 lb

Weight
2.5 lb
4.0 lb
5.2 lb
3.5 lb
5.3 lb
9.5 lb
11.1 lb

Std. Pack
10/bulk
10/bulk
10/bulk
10/bulk
   5/bulk
   5/bulk
   5/bulk

Other chain lengths available in quantities of 50 or more.

Trailer Safety Chain with 2 "S" Hooks / TCC1, TCC3

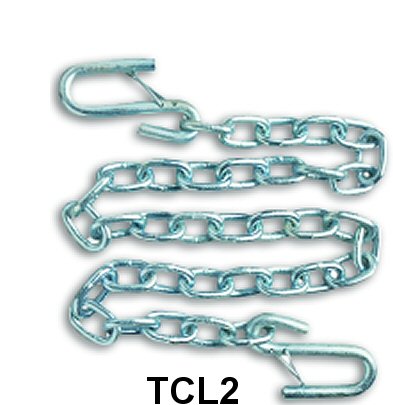

TCL2

Trailer Safety Chain With 2 “S” Hooks

Designed to keep trailer connected to vehicle if hitch fails or comes uncoupled. Brite zinc finish. 48" chain - overall length is 51". This grade of chain is designed for trailer safety chain applications only. Not for overhead lifting.

TCC1

3/16" chain with two 3/8" S-hooks

Max Load
3,000 lb

Weight
2.0 lb

Std. Pack
20/bulk*

Trailer Safety Chain With 2 Latch “S” Hooks

These hooks have a safety latch which meets California towing requirements. Designed to keep trailer connected to vehicle if hitch fails or comes uncoupled. Brite zinc finish. 48" chain - overall length is 51". This grade of chain is designed for trailer safety chain applications only. Not for overhead lifting.

TCL1
TCL2
TCL3

3/16" chain with two 3/8" S-hooks with latches
1/4" chain with two 7/16" S-hooks with latches
5/16" chain with two 17/32" S-hooks with latches

Max Load
3,000 lb
5,000 lb
7,600 lb

Weight
2.1 lb
3.0 lb
5.0 lb

Std. Pack
20/bulk*
15/bulk*
10/bulk*

NOTE: Some states require safety latch “S” hooks.

*Available with bar code on tag

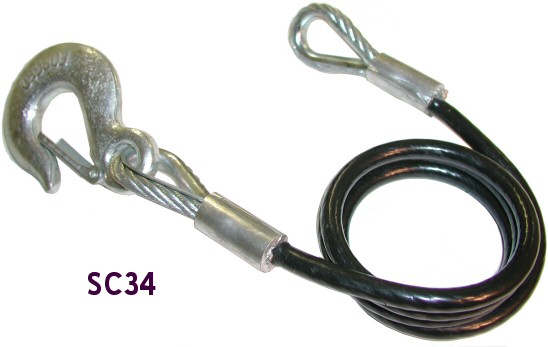

SC34

Trailer Safety Cable


	Black PVC coated cable
	Heavy-duty 7 x 19 stranded cable

SCL4
SC34
SC35

7,000 lb 1/4"-5/16" cable with S-hook - 39" overall
10,000 lb 5/16"-3/8" cable with eye hook - 51" overall
12,000 lb 3/8"-1/2" cable with eye hook - 43" overall

Weight
1.1 lb
1.7 lb
2.4 lb

Std. Pack
50/box
25/box
25/box

TSH2

TSL2

Trailer Safety Chain “S” Hooks

TSH1
TSL1
TSH2
TSL2
TSH4
TSL4

3/8" Safety Chain S-hook, fits 3/16" chain
3/8" Safety Chain S-hook with latch, fits 3/16" chain
7/16" Safety Chain S-hook, fits 1/4" chain
7/16" Safety Chain S-hook with latch, fits 1/4" chain
17/32" Safety Chain S-hook, fits 5/16" chain
17/32" Safety Chain S-hook with latch, fits 5/16" chain

MBS
3,000 lb
3,000 lb
5,000 lb
5,000 lb
7,600 lb
7,600 lb

Weight
0.3 lb
0.3 lb
0.4 lb
0.4 lb
0.6 lb
0.6 lb

Std. Pack
200*
200*
125*
125*
100*
100*

NOTE: Some states require safety latch “S” hooks.

QL02

Quick Links

QL01 QL02 QL03 QLH4	1/4" quick link, zinc plated, fits 3/16"-1/4" chain 5/16" quick link, zinc plated, fits 1/4"-5/16" chain 3/8" quick link, zinc plated, fits 3/8" chain 1/2" quick link, zinc plated, fits 3/8"-1/2" chain	MBS/WLL 5,200/1,300 lb 7,040/1,760 lb 10,560/2,640 lb 13,200/3,300 lb	Weight 0.08 lb 0.18 lb 0.29 lb 0.49 lb	Std. Pack 500* 300* 200* 100*

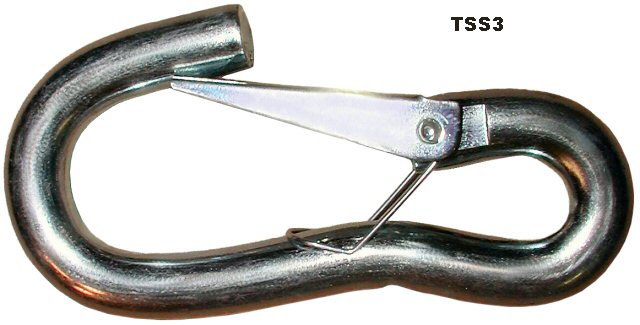

TSS3

Safety Chain Hooks with Latch

TSS1 TSS3	safety chain hook with latch, fits 1/4" chain, zinc safety chain hook with latch, fits 5/16" chain, zinc	MBS 1,200 lb 5,500 lb	Weight 0.30 lb 0.43 lb	Std. Pack 150* 100*

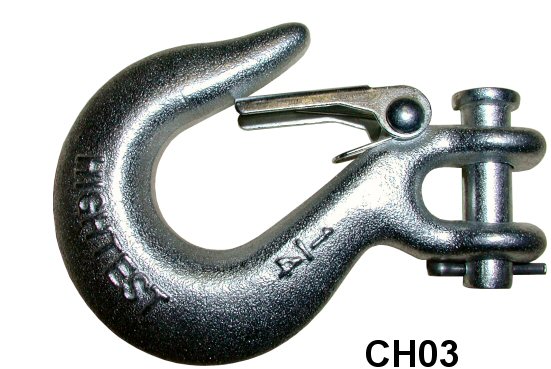

CH03

Clevis Slip Hooks with Latch

CH03 CH04 CH74 CH05 CH75 CH06	1/4" clevis slip hook with latch, grade 43 5/16" clevis slip hook with latch, grade 43 5/16" clevis slip hook with latch, grade 70 3/8" clevis slip hook with latch, grade 43 3/8" clevis slip hook with latch, grade 70 1/2" clevis slip hook with latch, grade 43	MBS 7,800 lb 11,700 lb 18,800 lb 16,200 lb 26,400 lb 27,600 lb	Weight 0.7 lb 1.0 lb 0.9 lb 1.4 lb 1.4 lb 3.1 lb	Std. Pack 50/bulk* 50/bulk* 50/bulk* 30/bulk* 30/bulk* 15/bulk*

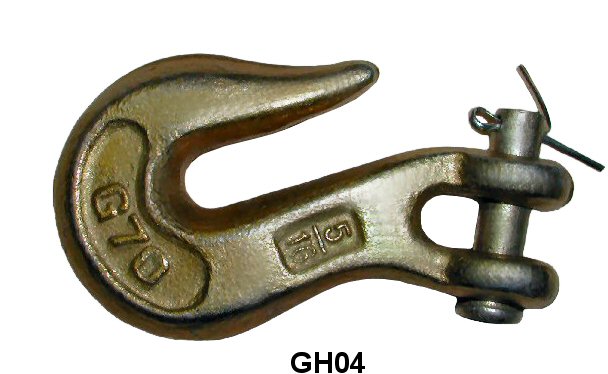

GH04

Clevis Grab Hooks

GH03 GH04 GH05	1/4" clevis grab hook, grade 70 5/16" clevis grab hook, grade 70 3/8" clevis grab hook, grade 70	MBS/WLL 12,600/3,600 lb 18,800/5,400 lb 26,400/7,500 lb	Weight 0.46 lb 0.77 lb 1.1 lb	Std. Pack 100/bulk* 50/bulk* 50/bulk*

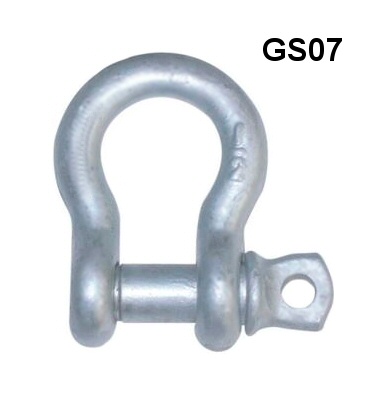

GS07

Bow Shackles

GS03
GS04
GS05
GS06
GS07
GS08
GS09
GS10
GS11

1/4" bow shackle, galvanized
5/16" bow shackle, galvanized
3/8" bow shackle, galvanized
7/16" bow shackle, galvanized
1/2" bow shackle, galvanized
5/8" bow shackle, galvanized
3/4" bow shackle, galvanized
7/8" bow shackle, galvanized
1" bow shackle, galvanized

WLL
600 lb
1,000 lb
1,500 lb
2,000 lb
3,000 lb
6,500 lb
9,500 lb
13,000 lb
17,000 lb

Weight
0.114 lb
0.182 lb
0.304 lb
0.446 lb
0.698 lb
1.27 lb
2.29 lb
3.31 lb
4.86 lb

Std. Pack
200/bulk*
100/bulk*
100/bulk*
50/bulk*
50/bulk*
50/bulk
25/bulk
12/bulk
10/bulk

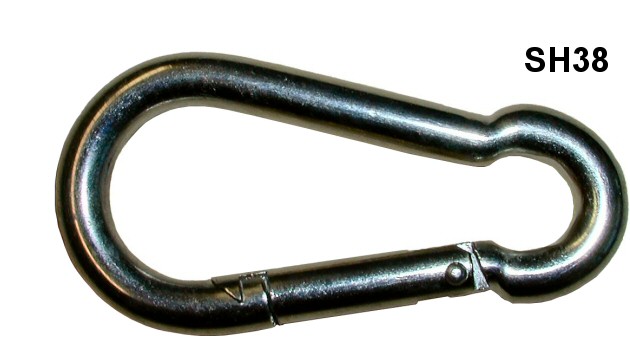

SH38

Snap Hooks

SH52 SH36 SH54 SH74 SH56 SH12 SH38	5/32" x 1 9/16" long snap hook, zinc plated steel 3/16" x 2" long snap hook, zinc plated steel 15/16" x 2 3/8" long snap hook, zinc plated steel 17/64" x 2 3/4" long snap hook, zinc plated steel 5/16" x 3 1/8" long snap hook, zinc plated steel 11/32" x 3 17/32" long snap hook, zinc plated steel 3/8" x 3 15/16" long snap hook, zinc plated steel	MBS 350 lb 440 lb 525 lb 660 lb 1,000 lb 1,100 lb 1,500 lb	Weight 0.019 lb 0.035 lb 0.059 lb 0.092 lb 0.161 lb 0.209 lb 0.293 lb	Std. Pack 200/bulk* 200/bulk* 200/bulk* 200/bulk* 200/bulk* 200/bulk* 150/bulk*

*Available carded

F805

Figure-Eight Connecting Links

	F806 works as a safety chain attachment on the newer pickup hitches such as Ford
	Grade 80
	Zinc plated

F801 F803 F804 F805 F806	fits 1/4" Chain fits 5/16" Chain fits 3/8" Chain fits 1/2" Chain fits 5/8" Chain	A 0.66" 0.69" 0.86" 1.14" 1.39"	B 0.70" 0.85" 0.94" 1.37" 1.59"	C 2.0" 2.3" 2.5" 3.3" 4.0"	Diameter 0.314" 0.385" 0.472" 0.591" 0.708"	Max. Load/ Working Load 13,200/3,300 17,600/4,400 28,200/7,000 47,600/11,900 72,300/18,000	Weight 0.25 lb 0.39 lb 0.69 lb 1.39 lb 2.49 lb	Std. Pack 100/box* 75/box* 56/box* 28/box 20/box

*Available carded

MB58

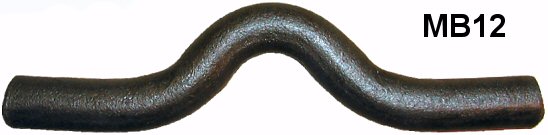

MB12

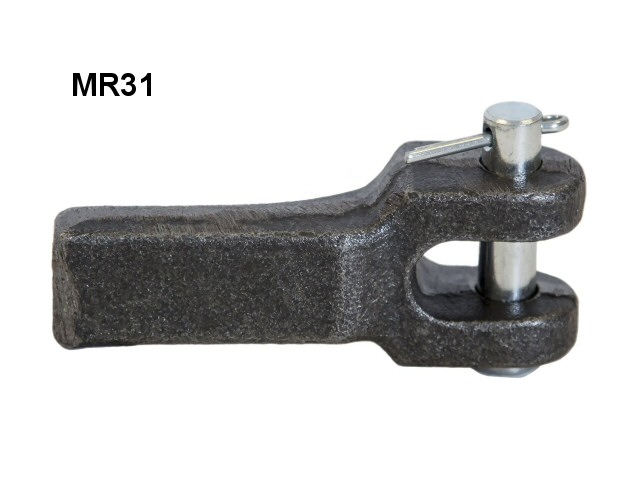

MR31

Safety Chain Retainer Brackets


	Weld-on
	Raw finish

MB38
MB12
MB58
MR31
RP31
MR38
RP38

3/8" diameter weld-on mounting bracket, raw finish
1/2" diameter weld-on mounting bracket, raw finish
5/8" diameter weld-on mounting bracket, raw finish
5/16" forged safety chain retainer, weld-on, 10,000 lb
replacement pin and clip for #MR31
3/8" forged safety chain retainer, weld-on, 25,000 lb
replacement pin and clip for #MR38

Weight
0.16 lb
0.37 lb
0.90 lb
0.73 lb
0.06 lb
1.06 lb
0.11 lb

Std. Pack
50/bulk
50/bulk
100/bulk
25/bulk
12/bulk
25/bulk
12/bulk

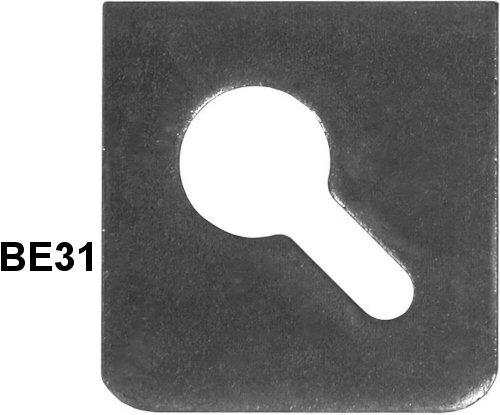

BE31

Banjo Eyes


	For dump tailgates and various load securing applications

BE31
BE38

banjo eye for 5/16" chain, plain steel
banjo eye for 3/8" chain, plain steel

Weight
0.87 lb
0.78 lb

Std. Pack
10/bulk
10/bulk

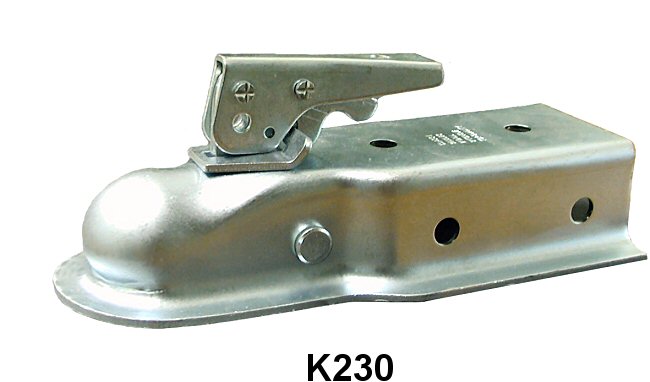

K230

DBCX AC2B

KA20

Trailer Couplers

Channel Couplers with Latch Handle
Quick-locking handle/underjaw design and trigger action mechanism clamps or releases the ball for a fast and easy hook-up.

K120 K125 K130 K220 K225 K230 KH23	1 7/8" ball x 2" channel - 2,000 lb capacity, zinc 1 7/8" ball x 2 1/2" channel - 2,000 lb capacity, zinc 1 7/8" ball x 3" channel - 2,000 lb capacity, zinc 2" ball x 2" channel - 3,500 lb capacity, zinc 2" ball x 2 1/2" channel - 3,500 lb capacity, zinc 2" ball x 3" channel - 3,500 lb capacity, zinc 2" ball x 3" channel - 5,000 lb capacity, zinc	Weight 3 lb 3 lb 3 lb 4.5 lb 4.5 lb 4.8 lb 5.1 lb	Std. Pack 10/bulk 10/bulk 10/bulk 10/bulk 10/bulk 10/bulk 5/bulk

Adjustable Channel Couplers with Latch Handle
Bolt into a channel for multiple raise or drop applications. Quick-locking handle/underjaw design and trigger action mechanism clamps or releases the ball for a fast and easy hook-up.

AC2B AC3B DBCX	2" ball - 8,000 lb capacity, black 2 5/16" ball - 14,000 lb capacity, black 6 hole channel for AC2B and AC3B, black	Weight 8.8 lb 9.4 lb 7.9 lb	Std. Pack 4/bulk 4/bulk 8/bulk

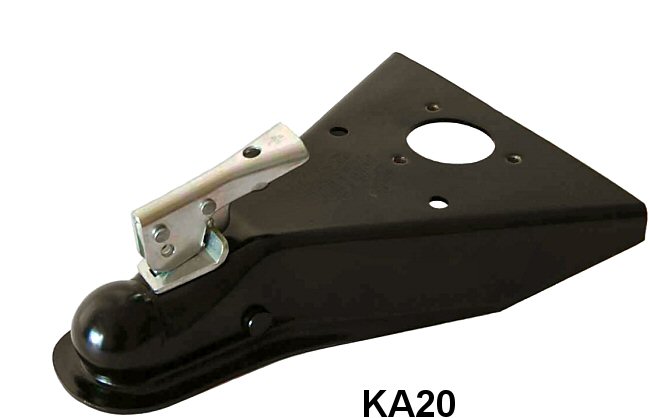

A-Frame Couplers with Latch Handle
Quick-locking handle/underjaw design and trigger action mechanism clamps or releases the ball for a fast and easy hook-up.

KA20
KA30
KA3X

2" ball A-frame - 5,000 lb capacity, black
2 5/16" ball A-frame - 10,000 lb capacity, black
2 5/16" ball A-frame - 14,000 lb capacity, black

Weight
6.5 lb
8.9 lb
9.0 lb

Std. Pack
6/bulk
6/bulk
6/bulk

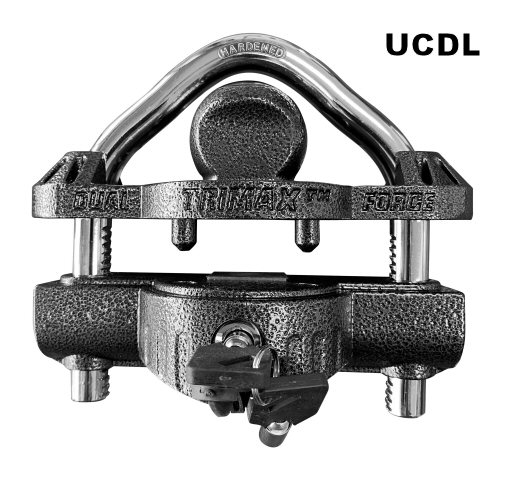

UCDL

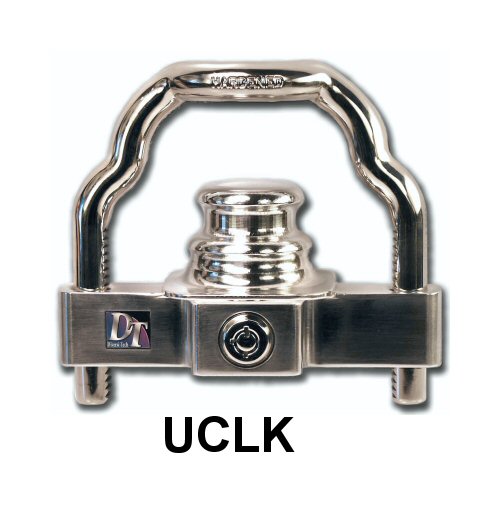

UCLK

Coupler Pins and Locks		Weight	Std. Pack
WL14 WL45 CBB1 UCDL UCLK UCKA UCAA	1 1/4" long, 1/4" diameter lock pin, zinc plated 4" long, 5/16" diameter lock pin, zinc plated barbell trailer coupler lock, black finish die-cast coupler lock - 4 1/2" wide, keyed different hardened steel coupler lock, 4 1/2", keyed different hardened steel coupler lock, 4 1/2", keyed alike hardened steel coupler lock, 4 1/2", key #312	0.07 lb 0.06 lb 0.9 lb 3.9 lb 3.2 lb 3.2 lb 3.2 lb	50/bulk* 50/bulk* carded 1/clam shell 1/clam shell 1/clam shell 1/clam shell

*Available carded
