Installation

Stainless Steel Hitch Balls

Made from polished stainless steel for durable-lasting shine

Rust resistant

Recommended for use with stainless steel ball mounts


MODEL NO.	BALL SIZE	SHANK DIAMETER	SHANK LENGTH	TOW CAP. (lb)	WEIGHT. EACH (lb)		STND. PACK.	MASTER PACK.

SC23-C SC30-C	2" 2 5/16"	1" 1"	2 1/2" 2 1/2"	7,500 8,000		2.5 3.5	1/clam shell 1/clam shell	24 12

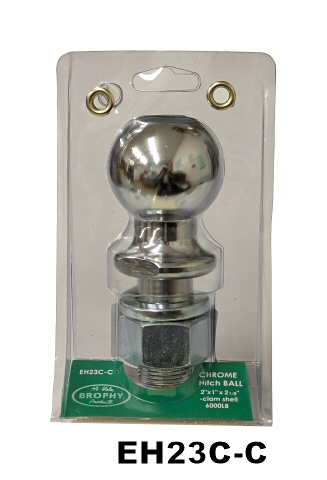

Economy Hitch Balls

CHROME finish

Wrench flat collar


MODEL NO.	BALL SIZE	SHANK DIAMETER	SHANK LENGTH	TOW CAP. (lb)	WEIGHT EACH (lb)		STND. PACK.	MASTER PACK.

EH11C-C EH12C-C EH21C-C EH23C-C EH26C-C EH30C-C EH31C-C EH68C-C EX68C-C EH69C-C EX69C-C EH70C-C EX70C-C EH53C-C	1 7/8" 1 7/8" 2" 2" 2" 2 5/16" 2 5/16" 2" 2" 2 5/16" 2 5/16" 2 5/16" 2 5/16" 50mm	3/4" 1" 3/4" 1" 1 1/4" 1" 1 1/4" 1" 1" 1" 1" 1 1/4" 1 1/4" 1"	1 3/4" 2" 1 3/4" 2 1/8" 2 3/4" 2 1/8" 2 1/4" 2 1/8" 2 1/8" 2 1/8" 2 1/8" 3" 2 7/8" 2 1/8"	2,000 2,000 3,500 6,000 8,000 6,000 10,000 8,000 10,000 8,000 12,000 14,000 30,000 8,000		2 2 2 2.5 2.5 3 3.5 4 2.5 2.6 3.5 3.6 4 2.5	1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell 1/clam shell	24 24 24 24 24 12 12 12 24 24 12 12 12 24

Internal Thread hitch Balls


	CHROME finish


MODEL NO.	BALL SIZE	BOLT DIAMETER	BOLT LENGTH	TOW CAP. (lb)	WEIGHT EACH (lb)	STND. PACK.	MASTER PACK.

EI1C-C EI2C-C	1 7/8" 2"	3/4" 3/4"	2" 2"	2,000 3,500	2 2	1/clam shell 1/clam shell	24 24

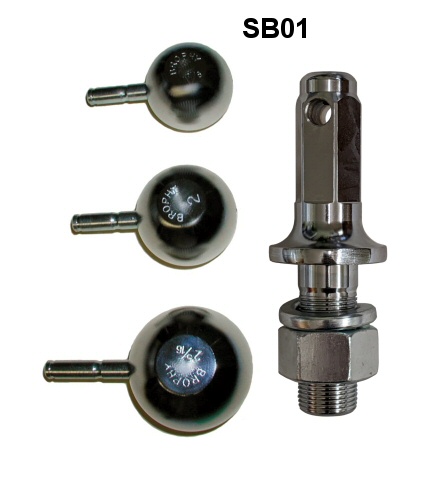

SB01

EZ Change Hitch Ball Sets

Easy to change and use

Sets come with all three sizes of hitch balls

8,000 lb capacity

Chrome plated

SB01
SB02
SRB1
RP01
SRB2
RP02
SRB3
RP03

1 7/8", 2" & 2 5/16" x 1" shank x 2 1/4" long hitch ball set
1 7/8", 2" & 2 5/16" x 1" shank x 3 1/4" long hitch ball set
1 7/8" replacement ball and pin only for SB01 & SB02
1 7/8" replacement pin only for SB01 & SB02
2" replacement ball and pin only for SB01 & SB02
2" replacement pin only for SB01 & SB02
2 5/16" replacement ball and pin only for SB01 & SB02
2 5/16" replacement pin only for SB01 & SB02

Weight
4.7 lb
4.9 lb
0.6 lb
0.1 lb
0.8 lb
0.1 lb
1.3 lb
0.1 lb

Std. Pack
1/clam shell
1/clam shell
1/bulk
1/bulk
1/bulk
1/bulk
1/bulk
1/bulk

Made by Brophy in the USA

	Machined from solid steel bars
	All national fine threads
	Other sizes and finishes available with minimum quantities and extended lead times
	Available in clam shell packaging
	Some available in PLAIN steel, ZINC and CHROME finish

MODEL
NO.

FINISH

BALL
SIZE

SHANK
DIAMETER

SHANK
LENGTH

TOW
CAP. (lb)

STND.
PACK.

WT/EA.
(lb)

WT/BX
(lb)

*CB11Z
CB66
*CB12Z
*CB20Z
*CB21Z
*CB67Z
*CB22Z
CB23
CB84
CB24
*CB25Z
CB26
*CB28Z
*CB29Z
*CB27Z
CB30
CB85
CB31
*CB32Z
*CB33Z
*CB34Z
CB41
CB42
*CB53Z

Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined
Machined

1 7/8"
1 7/8"
1 7/8"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2 5/16"
2 5/16"
2 5/16"
2 5/16"
2 5/16"
2 5/16"
2"
2 5/16"
50 mm

3/4"
3/4"
1"
5/8"
3/4"
3/4"
1" (short neck)
1"
1"
1" (1" lift)
1" (2" lift)
1 1/4"
1 1/4" (1" lift)
1 1/4" (2" lift)
1 3/8"
1"
1"
1 1/4"
1 1/4" (1" lift)
1 1/4" (2" lift)
1 3/8"
WELD ON
WELD ON
1"

1 3/4"
3"
2"
1 5/8"
1 3/4"
3"
2"
2"
3"
2"
2"
2 1/4"
2 1/2"
2 1/2"
2 3/8"
2"
3"
2 1/4"
2 1/2"
2 1/2"
2 3/8"
–
–
2"

3,500
3,500
3,500
2,000
3,500
3,500
3,500
5,000
5,000
5,000
3,500
7,500
6,000
5,000
7,500
6,000
6,000
7,500
7,500
5,000
10,000
3,000
3,000
5,000

25
25
25
25
25
25
25
25
25
20
17
23
16
10
20
16
16
16
14
11
16
46
16
25

1.7
2
1.7
1.8
2
2.4
2.4
2.5
2.5
3.4
4
3
3.8
4.9
3.5
3.5
3.5
4.1
5
6.3
4.3
1.5
3
2.5

43
50
43
45
50
60
60
63
63
68
68
69
61
49
70
56
56
66
70
69
69
69
43
63

* Available in ZINC finish only

NF hex nut and lockwasher, zinc / 2903-2908

Replacement Nuts and Washers

2907 2908 2905 2906 2903 2904	3/4" NF hex nut, zinc 3/4" lockwasher, zinc 1" NF hex nut, zinc 1" lockwasher, zinc 1 1/4" NF hex nut, zinc 1 1/4" lockwasher, zinc	Recommended Torque 180 ft-lb 240 ft-lb 360 ft-lb	Weight 0.11 lb 0.04 lb 0.27 lb 0.09 lb 0.34 lb 0.16 lb	Std. Pack 1/bulk* 1/bulk* 1/bulk* 1/bulk* 1/bulk* 1/bulk*

*Available carded

Reducer Bushings

	More economical than buying an extra hitch ball
	Zinc plated finish
	Designed for all Ball mounts

RB34 RB01	reduces a 1" hitch ball hole to a 3/4" hole, zinc reduces a 1 1/4" hitch ball hole to a 1" hole, zinc	Weight 0.04 lb/pkg. 0.05 lb/pkg.	Std. Pack 12/bag* 12/bag*

*Available carded

Hitch Ball Covers

	Protect your hitch ball when not in use
	Available in 1 7/8" - 2" and 2 5/16"
	Made from black pliable, durable plastisol
	Won't come off during travel

HCB2 HCB3	1 7/8" - 2" ball cover, black 2 5/16" ball cover, black	Weight 3 lb/box 3 lb/box	Std. Pack 25/bulk* 16/bulk*

*Available carded

Brophy Machined Steel Coupler Balls are trouble-free and little attention is required.

Installation

Insert coupler ball shank into ball mount hole and install lock washer and nut.
Use a drop of oil on threads and torque tighten nut as follows:
   5/8" shank @ 95 ft-lbs
   3/4" shank @ 180 ft-lbs
    1" shank @ 240 ft-lbs
1 1/4" shank @ 360 ft-lbs
1 3/8" shank @ 460 ft-lbs
Check coupler ball nut occasionally during normal use, and more often on long trips to be sure tension is maintained and nut does not loosen.
Make sure to use special lubricant or grease on ball so the coupler can move freely.

Notes

The coupler ball is the heart of your towing system. It costs the least and is the hardest-working component. It pays to use the very best for this critical part of the job.
All Brophy coupler balls comply with safety specifications and requirements of SAE J684. Important: Your towing capacity is limited to the lowest-rated towing component; be it the Receiver Hitch, Ball Mount, Coupler Ball, etc.
You may find it convenient to carry a number of different size coupler balls to suit various towing applications that arise. These different size coupler balls should all have the same shank size and be large enough to do the heaviest job required.
