C.R. Brophy Machine Works, Inc. -- Tie Downs / Hold Downs

Camper Tie Down, zinc plated finish & mounting diagram / TDBP

Camper Tie Down

Stake Pocket

	Designed for full-size pickups
	Three removable spacer tabs allow custom fit for most pickups
	Mounts permanently in stake tube for a tie down that is always ready to use
	Tab lock anchors tie down to truck rail to prevent lifting and twisting
	For campers up to 8 ft (overall length including any cab-over section)

TDSF TDBP TDHP	black powder coated finish bright zinc plated finish 4 turnbuckles, chains & hooks	Weight 18 lb 18 lb 4 lb	Std. Pack 1/box 1/box 1/bag
Warning: Does not fit 2011-NEWER pickups, use Super Heavy-Duty Hold Down. Always check your vehicle's owners manual for camper mounting. Warning: Not for off-road use

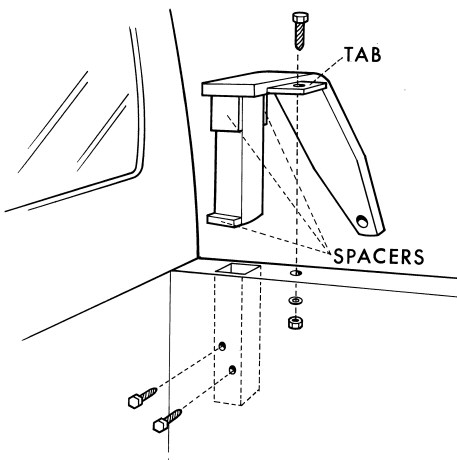

Mounting instructions for Stake Pocket Camper Tie Downs

Camper Hold Down - Super Heavy Duty, zinc plated finish / HSBP

HSBP

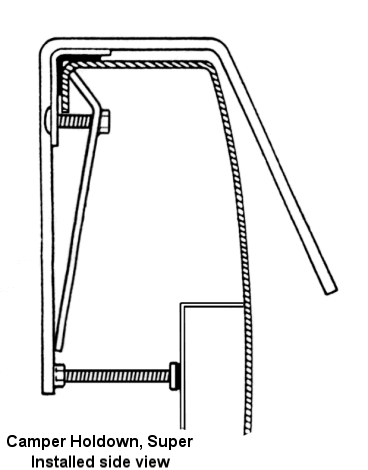

Mounting diagram for Camper Hold Down

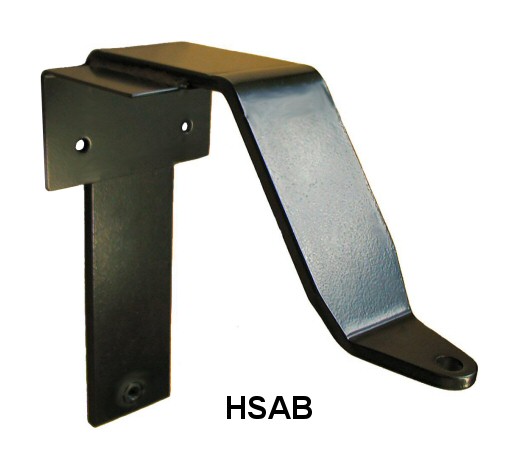

HSAB

installed

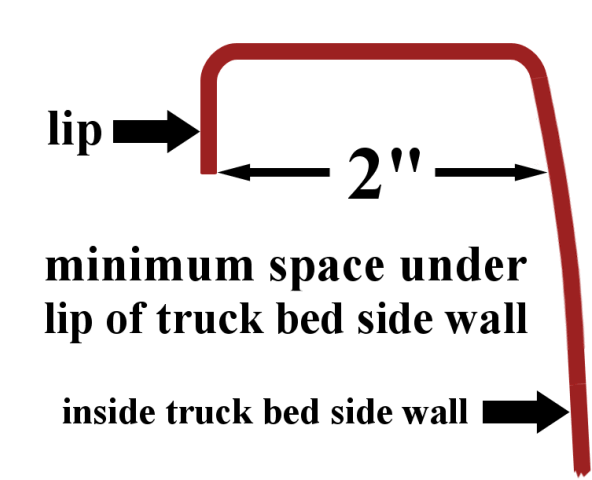

2 inches minimum space between sidewall and lip

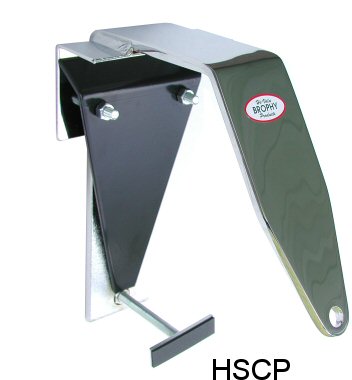

Camper Hold Down

Super Heavy-Duty

	Wider design fits the newest full size pickups
	No drilling required
	Quick, easy and secure installation, simply tighten two bolts
	Extra wide clamp for exceptional holding strength
	No projections into wheel well

HSSF HSBP HSAB HSWB TDHP	black powder coated finish bright zinc plated finish camper hold down with angle, black 2019-newer Ford F250 & F350 ONLY, black 4 turnbuckles, chains & hooks	Weight 46 lb 46 lb 48 lb 47 lb 4 lb	Std. Pack 1/set of 4 1/set of 4 1/set of 4 1/set of 4 1/bag
Minimum 2” clearance between sidewall and lip needed to install as shown on image at left. Always check your vehicle's owners manual for camper mounting. HSSF, HSBP and HSAB do not fit 2019 and newer Ford F250 & F350 (see #HSWB) or 2019 and newer Dodge Ram with tool box bed. Some pickups require extra long T-bars (item # 2007) for installation (not included.) Pickups that are known to require item #2007 include the 2020+ Chevrolet 2500/3500 and the 2006 Dodge Ram 1500 4x4 Warning: Not for off-road use

Mounting instructions for Super Heavy Duty Camper Hold Downs

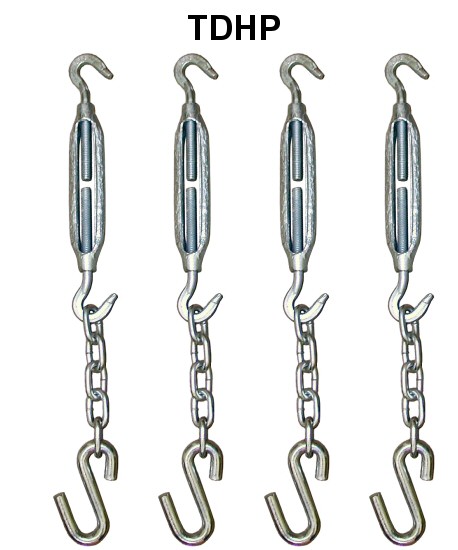

Tie Down Hardware Package / TDHP

Hardware Package

	Use with Tie Downs and Hold downs
	Hardware includes: (4) 3/8" turnbuckles, (4) “S” hooks and (4) chains.
	3,000 lb. max. capacity per set

TDHP
TB38

tie down hardware package
3/8" turnbuckle only

Weight
4 lb
1 lb

Std. Pack
1/bag
1/bulk
